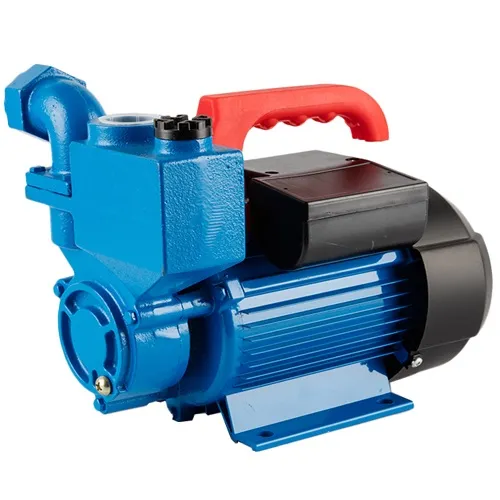

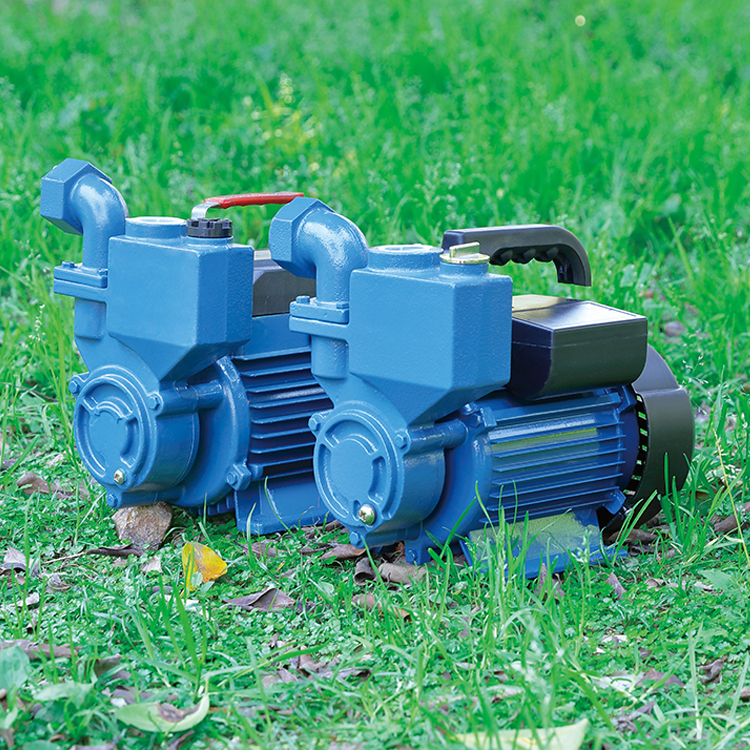

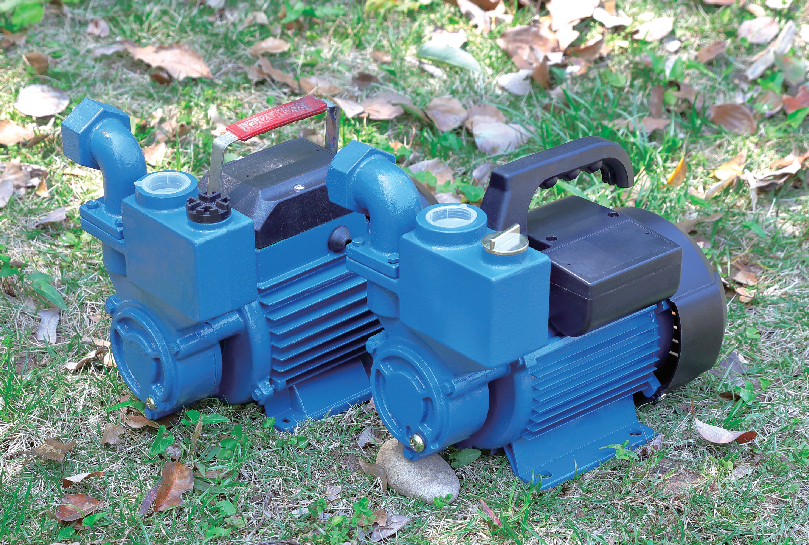

ZDB Series self-priming peripheral pump For household

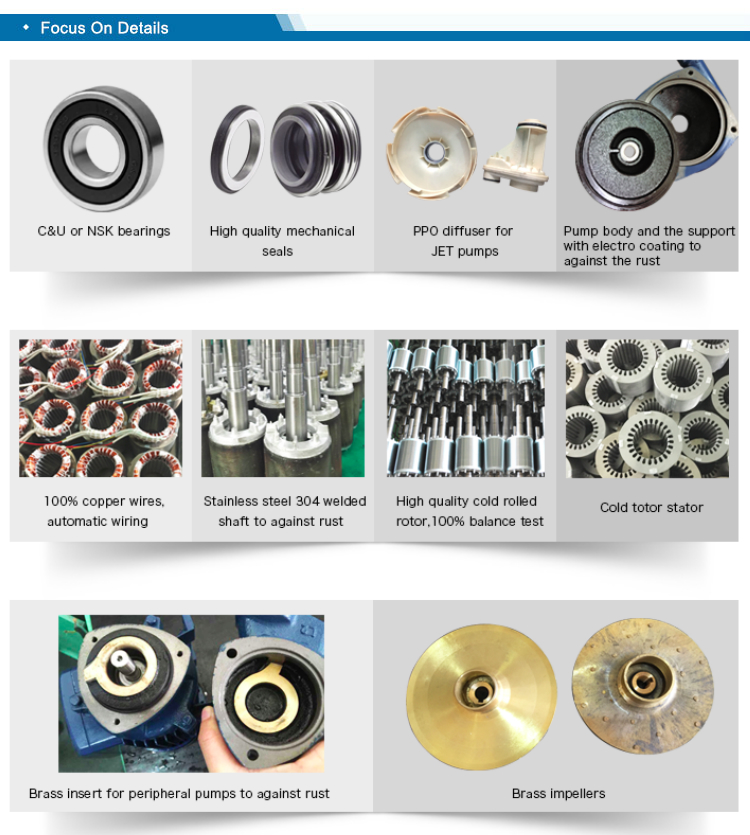

Application ZDB series peripheral pumps are mainly used to tansfer clean water or other liquid which is similar with water character.It is suitable for domestic water supply,automatic water sprinkler system,small air conditioner system or supporting equipment etc. Construct PUMP Single Phase Heavy Duty Continuous Work Pump body: Cast Iron Impeller: Brass/Stainless Steel Mechanical Seal: SIC/Ceramic/Graphite MOTOR Motor Housing: Aluminum Alloy Shaft:Carbon steel/stainless steel Insulation: ClassB/Class F Protection: IP44/IP54 Cooling:External Ventilation Operation Conditions Liquid temperature up to 60℃ Ambient temperature up to 40℃ Total suction lift up to 9m Continuous duty
