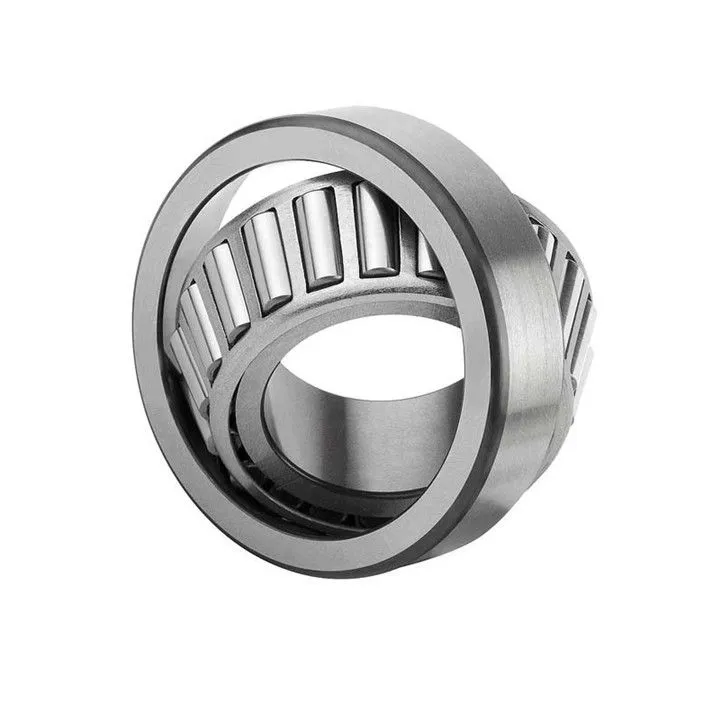

圆锥滚子轴承 taper roller bearins 30203 7203E

tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads. Industries: Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind. Benefits: Enhanced performance in demanding applications. Types of tapered roller bearing: single row tapered roller bearing double row tapered roller bearing four row tapered roller bearing tapered roller wheel bearing inch series tapered roller bearing Specification: tapered roller bearing Series tapered roller bearing Bearing number of row single row tapered roller bearing Bearing cage type stamped steel cage Dimensions: d - Bore 65mm D - Cup outer diameter 140mm B - Cone width 33 mm C - Cup width 23mm T - Bearing width 36 mm metric tapered roller bearing single row size list Bearing Specification Rated Load(KN) Speed(r/min) Weight No. d(mm) D(mm) W(mm) Cr(N) Cor(N) Grease Oil kg 30202 bearing 15 35 11.75 15.8 14.4 22000 28000 0.053 30203 bearing 17 40 13.25 21.2 21.3 19000 27000 0.075 30204 bearing 20 47 15.25 28.2 30.6 22000 28000 0.126 30205 bearing 25 52 16.25 29.4 22.54 20000 25000 0.157 30206 bearing 30 62 17.25 45.4 50.5 18000 24000 0.231 30207 bearing 35 72 18.25 56.8 63.5 20000 25000 0.331 30208 bearing 40 80 19.75 63 74 17000 22000 0.422 30209 bearing 45 85 20.75 71.3 83.8 16000 22000 0.474 30210 bearing 50 90 21.75 73.3 92.1 17000 22000 0.53 30211 bearing 55 100 22.75 94.6 112.8 15000 20000 0.712 30212 bearing 60 110 23.75 103.3 130 14000 19000 0.904 30213 bearing 65 120 24.75 120.6 152.6 15000 20000 1.13 30214 bearing 70 125 26.25 138.3 173.7 13000 18000 1.261 30215 bearing 75 130 27.25 138.4 185.4 12000 16000 1.36 30216 bearing 80 140 28.25 167.7 212.9 13000 18000 1.675 30217 bearing 85 150 30.5 177.6 236.8 11000 16000 2.06
