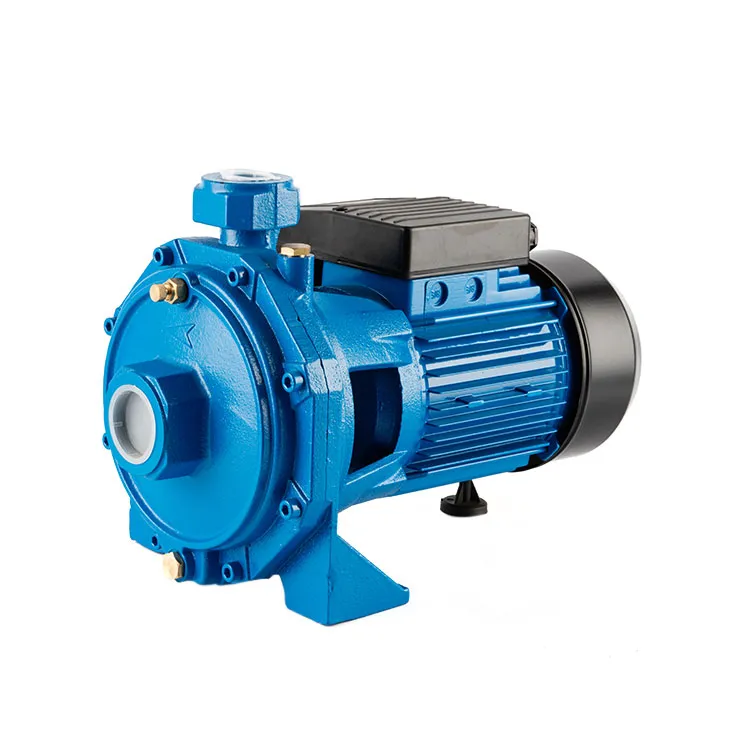

SCM2 series centrifugal pump two impeller for irrigation

Application SCM2 series are with two impellers back to back,because of two impellers to gain energy,it is an obvious choice that there is need for high head values but if hard to reach with single impeller centrifugal pumps.Suitable for civil and industrial used to pump clean water and chemically non-aggressive liquid.Particularly be used for increasing the supply pressure,feeding boliers and loading extremely. Construct PUMP Single Phase Heavy Duty Continuous Work Pump body: Cast Iron Impeller: Brass/Techno-polymer Mechanical Seal: SIC/Ceramic/Graphite MOTOR Motor Housing: Aluminum Alloy Shaft:Carbon steel/stainless steel Insulation: ClassB/Class F Protection: IP44/IP54 Cooling:External Ventilation Operation Conditions Liquid temperature up to 60℃ Ambient temperature up to 40℃ Total suction lift up to 9m Continuous duty
