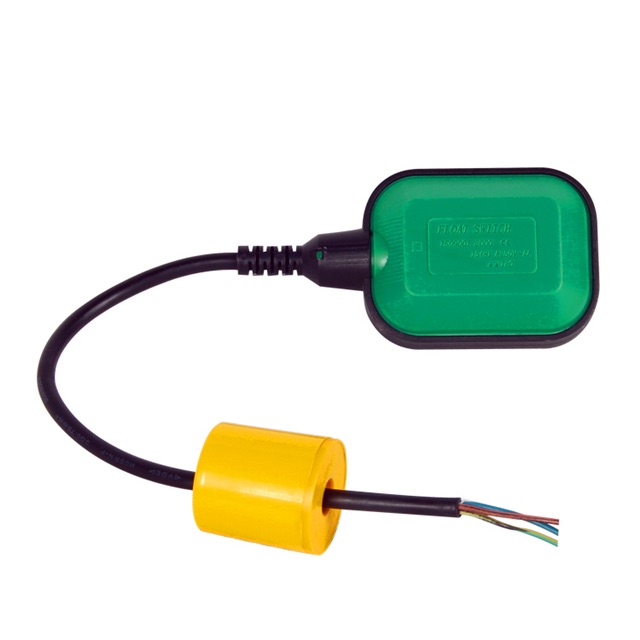

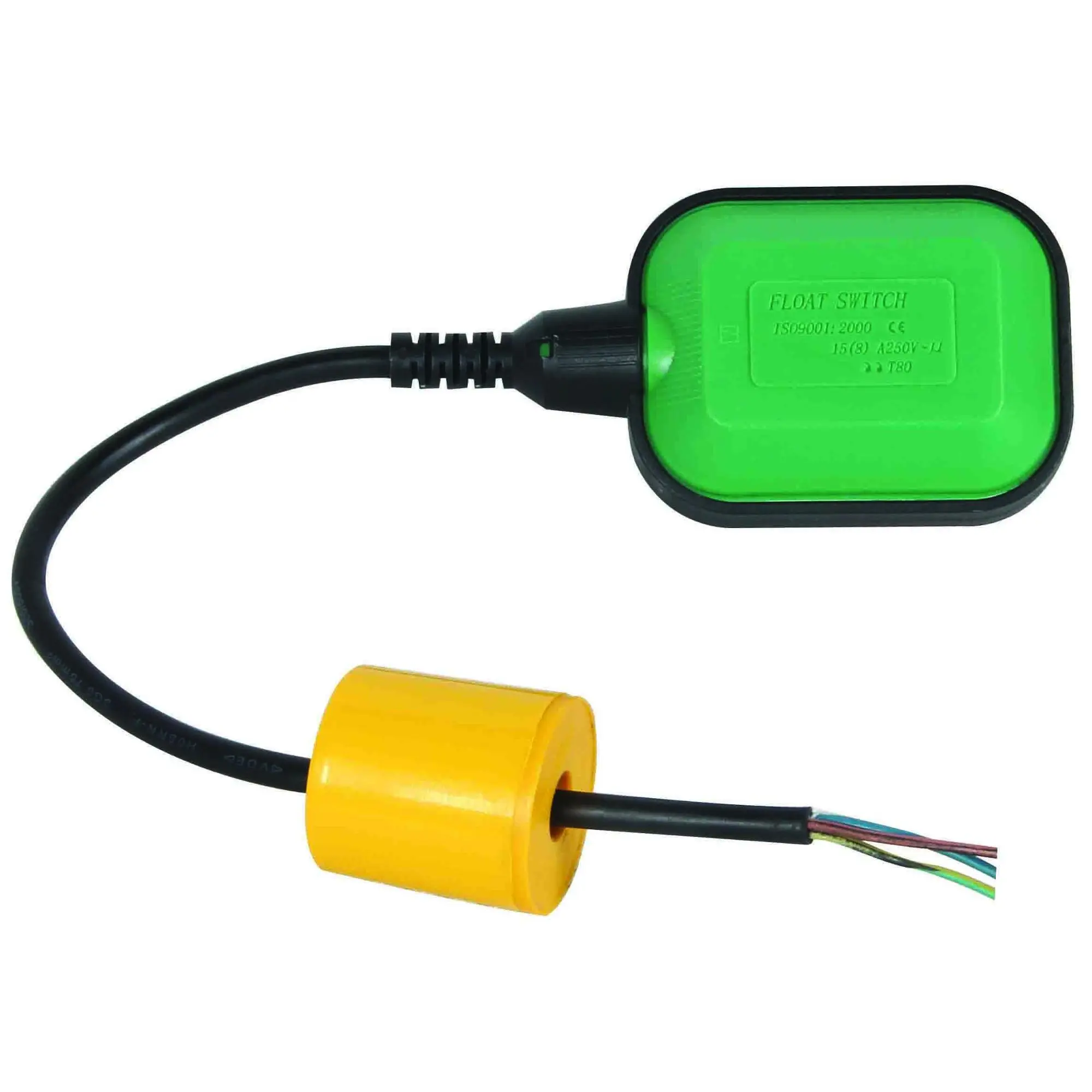

Floating Switch With 5m Cable Liquid Place Control

Overview Floating ball switch is a kind of simple structure, easy to use liquid level control device, it does not need to provide power, there is no complex circuit, it has a smaller volume than the general mechanical switch, long working life and other advantages. Operating Principle Floating ball switch USES magnetic force, no mechanical connection, simple and reliable operation. When the floating ball switch is floated by the measured medium, the float moves the main body, and the magnet at the other end of the float moves the magnet switch on the control bar. *PVC or Rubber Cable *Cable length as your need Product desription: This water pump float switch is widely used to control the liquid level. Our float switch quality is stable, safe, and pass CE approval.Flaot Switch's operation voltage is 220V, and current can be up to 10A. When liquid lift up to contact float, the float will have variable angles. The switch will have ON or OFF contact signal output when the angle is larger than 10 Degree. 1.Simple construction,reliable performance of cable float switch/water pump, tank float switch The product can output stable and reliable switch control signal of "of making", breaking "without any fault action,so its eliability is very high and antiinter-ference is strong . 2. Sturdy and durable,need not maintain of cable float switch/water pump, tank float switch Place of Origin: Zhejiang, China Brand Name ：LIP Model Number：FS-1 Max. Current：10A
